Octopus 619K
6-strand compacted hoisting ropes
DIN EN 12385-4-2003
They have stricter diameter tolerances;
They can be used both on domestic and imported equipment.
Characteristics
Specifications
Construction:
- 6x19 (1+9+9) + 1 O.S.
- 6х19 (1+9+9) + 7х7 (1+6)
Technical characteristics:

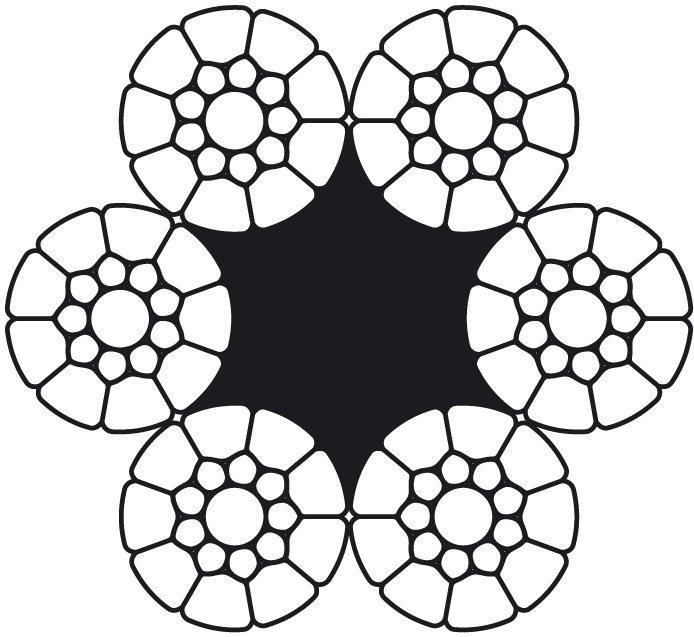

Rope with an organic core
| Diameter, mm | Approximate weight of 1 m, kg | Marking group, N/mm2 | |||
| 1770 | 1860 | 1960 | |||
| inch | mm | Minimum breaking force, kN | |||
| 1" | 25,4 | 2,62 | 421 | 442 | 466 |
| 1 1/8" | 28,6 | 3,29 | 528 | 555 | 585 |
|
1 1/4" |
31,8 | 4,03 | 648 | 681 | 718 |
|
1 3/8" |
34,9 | 4,86 | 781 | 820 | 864 |
|
1 1/2" |
38,1 | 5,76 | 925 | 972 | 1024 |

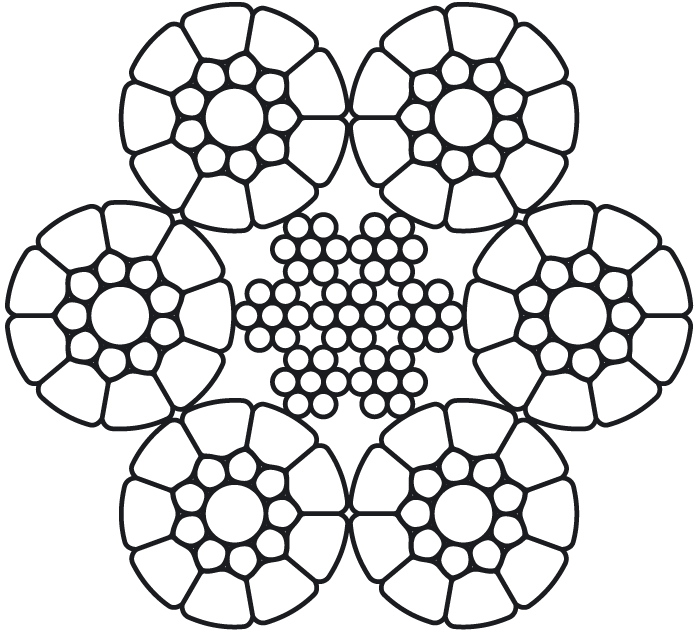

Rope with metal core
| Diameter, mm | Approximate weight 1 m, kg | Marking group, N/mm2 | |||
| 1770 | 1860 | 1960 | |||
| inch | mm | Minimum breaking force, kN | |||
| 1" | 25,4 | 2,89 | 455 | 478 | 504 |
| 1 1/8" | 28,6 | 3,64 | 574 | 603 | 636 |
|
1 1/4" |
31,8 | 4,45 | 702 | 738 | 777 |
|
1 3/8" |
34,9 | 5,38 | 848 | 891 | 939 |
|
1 1/2" |
38,1 | 6,36 | 1002 | 1053 | 1109 |
