Triniks ZL
Spiral construction compacted ropes
They are manufactured according to STO 34269720-TU 006-2016 of three types with plastic compression of the outer layer of wires.
Characteristics
Specifications
Rope construction

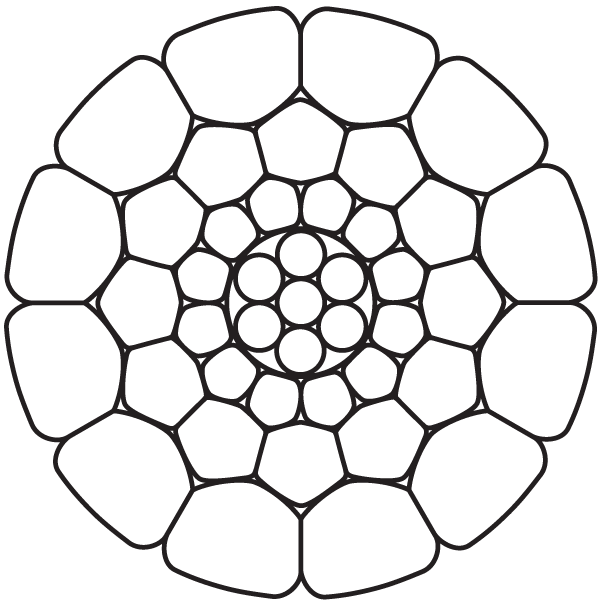

Triniks ZL I - 1 x K43 (1 + 6 + 12 + 12 + 12)

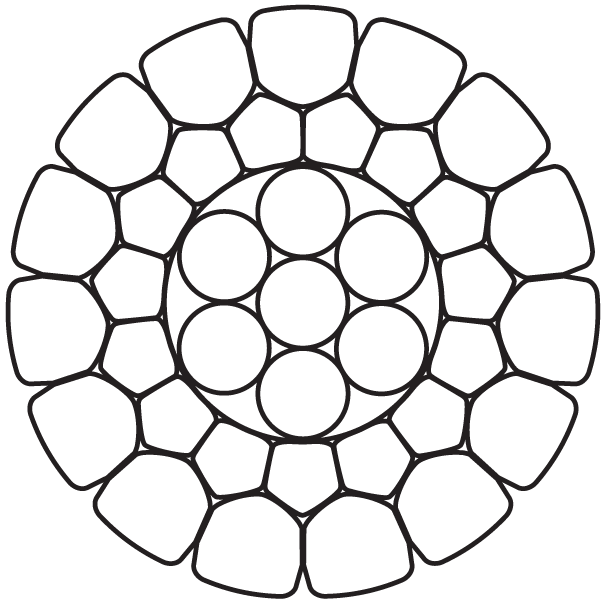

Triniks ZL II - 1 x K37 (1 + 6 + 15 + 15 )

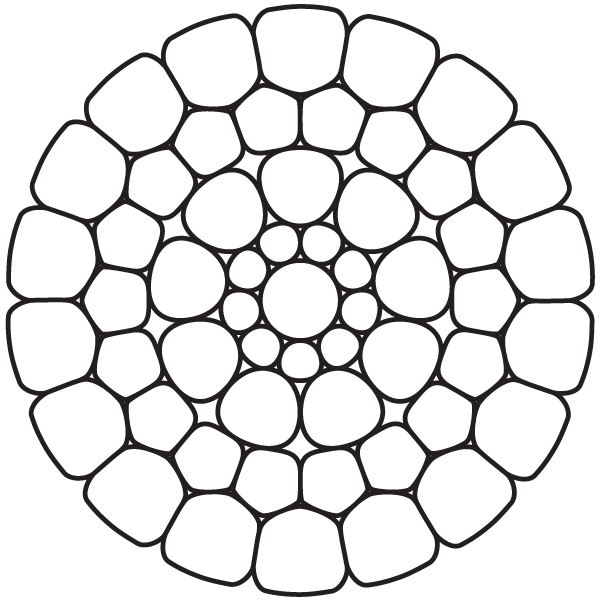

Triniks ZL III - 1 x K55 (1 + 9 + 9 + 18 + 18)
Technical specifications
| Diameter,mm | Approximate rope weight kg/m | Marking group, N/mm2 | ||
| 1570 | 1770 | 1960 | ||
| Minimum breaking force, kN | ||||
| 10,0 | 0,61 | 106 | 112 | 120 |
| 11,0 | 0,72 | 123 | 131 | 139 |
| 12,0 | 0,86 | 147 | 156 | 165 |
| 16,0 | 1,54 | 270 | 287 | 303 |
You can find all the information about our products in the uploaded catalogue. There you may become acquainted with detailed information on each product field, technical specifics of every product and our reference projects. If you cannot find your product of interest, do not hesitate to contact us and we will do our best to meet your requirements.
