Anaconda 34
Multi-strand non-twisting ropes
EN 12385
Benefits
- increased flexibility
- high strength
- less wear of rope wires at the points of contact of strands
- less wear of pulleys and drums due to increased contact area with the support surface
- non-twisting
Characteristics
Specifications
Rope construction

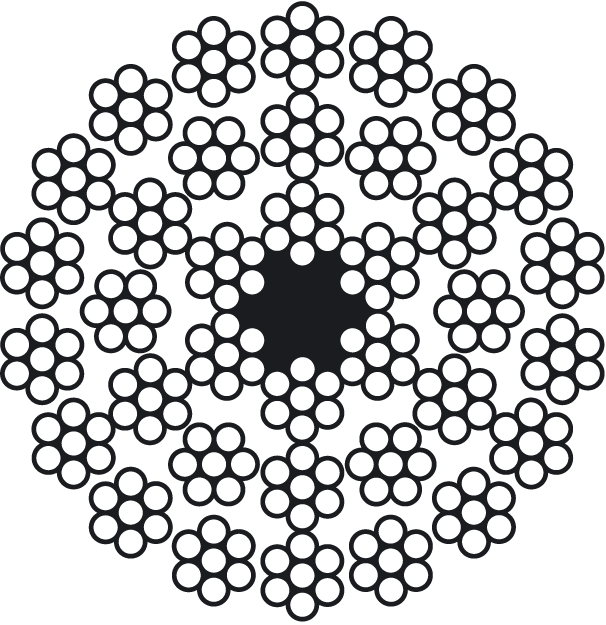

- 18x7 (1+6) + 1 O.S.

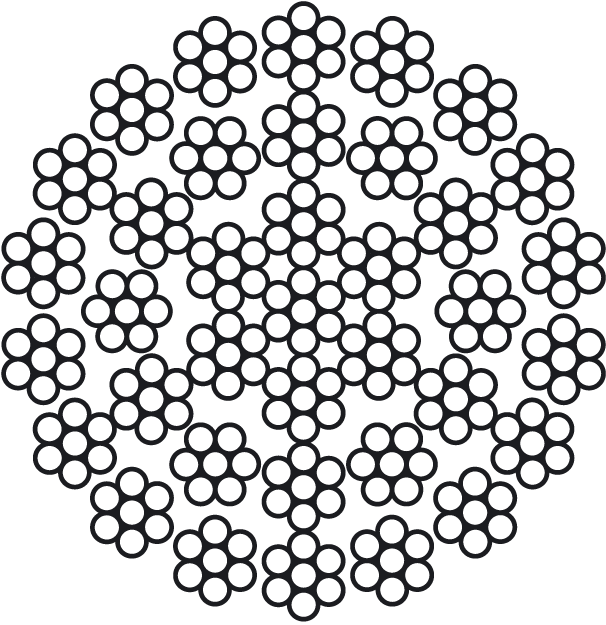

- 18x7 (1+6) + 1x7 (1+6)
Technical specifications
| Diameter, mm | Weight, kg/m | Rope grade, N/mm2 | ||
| 1570 | 1770 | 1960 | ||
| Minimum breaking load, kN | ||||
| 34 | 5.25 | 653 | 737 | 816 |
| 36 | 5.88 | 732 | 826 | 914 |
| 38 | 6.56 | 816 | 920 | 1020 |
| 40 | 7.26 | 904 | 1020 | 1130 |
| 42 | 8.01 | 997 | 1120 | 1240 |
| 44 | 8.79 | 1090 | 1230 | 1370 |
| 46 | 9.61 | 1200 | 1350 | 1490 |
| 48 | 10.5 | 1300 | 1470 | 1630 |
| 50 | 11.35 | 1410 | 1590 | 1760 |
| 52 | 12.3 | 1530 | 1720 | 1910 |
| 54 | 13.24 | 1650 | 1860 | 2060 |
You can find all the information about our products in the uploaded catalogue. There you may become acquainted with detailed information on each product field, technical specifics of every product and our reference projects. If you cannot find your product of interest, do not hesitate to contact us and we will do our best to meet your requirements.
