Anaconda 19K
Anaconda 19K Multi-strand compacted low-twisting ropes with a compacted core
EN 12385
Benefits
- increased flexibility
- high strength
- less wear of rope wires at the points of contact of strands
- less wear of pulleys and drums due to increased contact area with the support surface
- non-twisting
Characteristics
Specifications
Rope construction

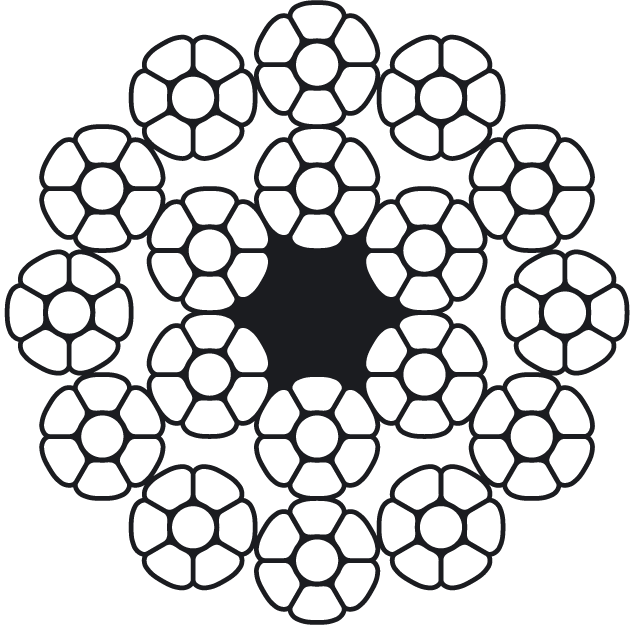

- 18x7 (1+6) + 1 O.S.

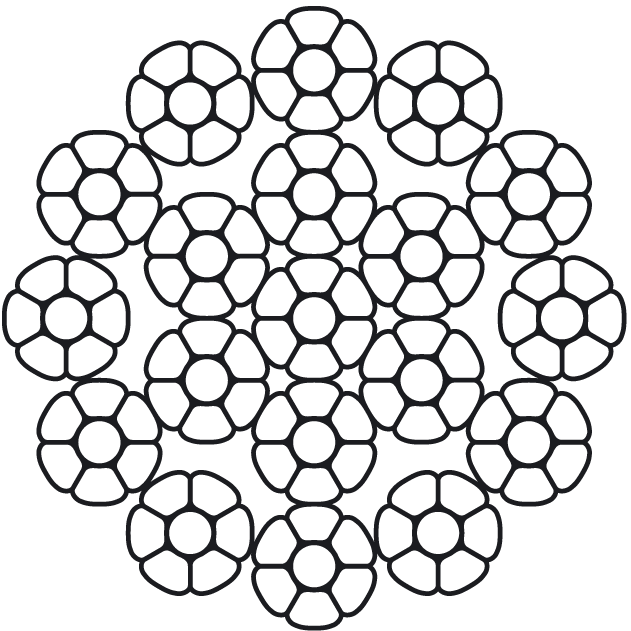

- 18x7 (1+6) + 1x7 (1+6)
Technical specifications
| Diameter, mm | Weight, kg/m | Rope grade, N/mm2 | |||
| 1570 | 1770 | 1960 | 2160 | ||
| Minimum breaking load, kN | |||||
| 10 | 0.48 | 68.2 | 76.9 | 85.1 | 94 |
| 11 | 0.58 | 81.1 | 91.4 | 101 | 112 |
| 12 | 0.69 | 97 | 109 | 121 | 133 |
| 13 | 0.8 | 113 | 127 | 141 | 155 |
| 14 | 0.95 | 134 | 151 | 167 | 184 |
| 15 | 1.07 | 151 | 170 | 188 | 208 |
| 16 | 1.23 | 173 | 195 | 216 | 238 |
| 17 | 1.37 | 193 | 217 | 240 | 265 |
| 18 | 1.56 | 220 | 248 | 274 | 302 |
| 19 | 1.73 | 244 | 275 | 304 | 335 |
| 20 | 1.95 | 275 | 310 | 343 | 378 |
