Anaconda 19
Multi-strand non-twisting ropes
EN 12385
Benefits
- increased flexibility
- high strength
- less wear of rope wires at the points of contact of strands
- non-twisting
Characteristics
Specifications
Construction:

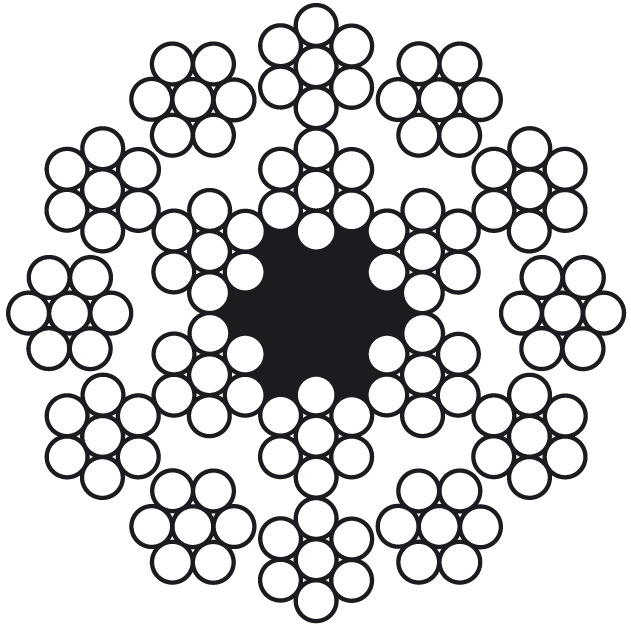

- 18x7 (1+6) + 1 O.S.

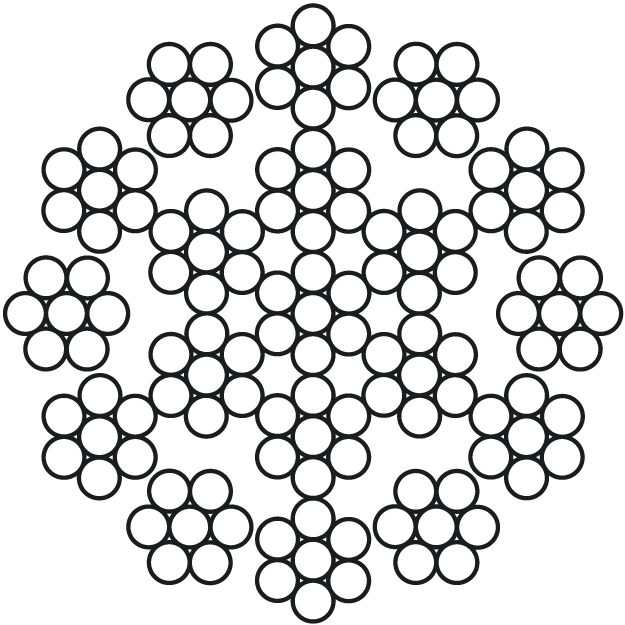

- 18x7 (1+6) + 1x7 (1+6)
Technical characteristics:
| Diameter, mm | Weight, kg/m | Rope grade, N/mm2 | |||
| 1770 | 1960 | 2160 | |||
| FC | WSC | Minimum breaking load, kN | |||
| 8 | 0.244 | 0.257 | 37.2 | 41.1 | 45.3 |
| 9 | 0.309 | 0.325 | 47 | 52 | 57.4 |
| 10 | 0.382 | 0.401 | 58.1 | 64.3 | 70.8 |
| 11 | 0.462 | 0.485 | 70.2 | 77.8 | 85.7 |
| 12 | 0.55 | 0.577 | 83.6 | 92,6 | 102 |
| 13 | 0.646 | 0.678 | 98.1 | 109 | 120 |
| 14 | 0.749 | 0.786 | 114 | 126 | 139 |
| 15 | 0.86 | 0.902 | 131 | 145 | 159 |
| 16 | 0.978 | 1.03 | 149 | 165 | 181 |
| 17 | 1.104 | 1.159 | 168 | 186 | 205 |
| 18 | 1.24 | 1,3 | 188 | 208 | 230 |
| 19 | 1.379 | 1.448 | 210 | 232 | 256 |
| 20 | 1.53 | 1.6 | 232 | 257 | 283 |
| 21 | 1.68 | 1.77 | 256 | 283 | 312 |
| 22 | 1.85 | 1.94 | 281 | 311 | 343 |
