Alerion MC8
8-strand ropes with a metal core
EN 12385-5
Benefits
- greater abrasion resistance
- high flexibility
- less impact of dynamic loads on the rope
Characteristics
Specifications

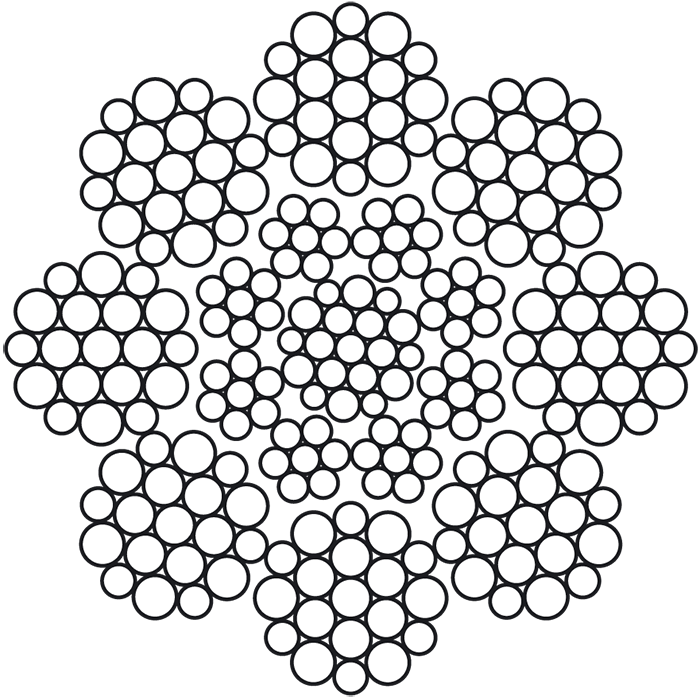

Construction:
- 8x19 + 8x7 + 1x19
Technical specifications:
| Diameter, mm | Estimated weight of 1m rope, kg | Marking group, N/mm2 | ||
| 1570 | 1570/1960 | 1770 | ||
| Calculated breaking force of the rope as a whole, kN | ||||
| 8 | 0,26 | 35,8 | 42,9 | 40,3 |
| 9 | 0,33 | 45,3 | 54,6 | 51,0 |
| 10 | 0,41 | 55,9 | 69,5 | 63,0 |
| 11 | 0,49 | 67,6 | 83,1 | 76,2 |
| 12 | 0,59 | 80,5 | 98,9 | 90,7 |
| 13 | 0,69 | 94,5 | 114,0 | 106,0 |
| 14 | 0,80 | 110,0 | 133,0 | 124,0 |
| 15 | 0,92 | 126,0 | 151,0 | 142,0 |
| 16 | 1,04 | 143,0 | 173,0 | 161,0 |
