Alerion 819
8-strand ropes with an organic core
EN 12385-5
Benefits
- greater abrasion resistance
- high flexibility
- less impact of dynamic loads on the rope
Characteristics
Specifications
Construction:
- 8x19 + 1 O.s
Technical specifications:

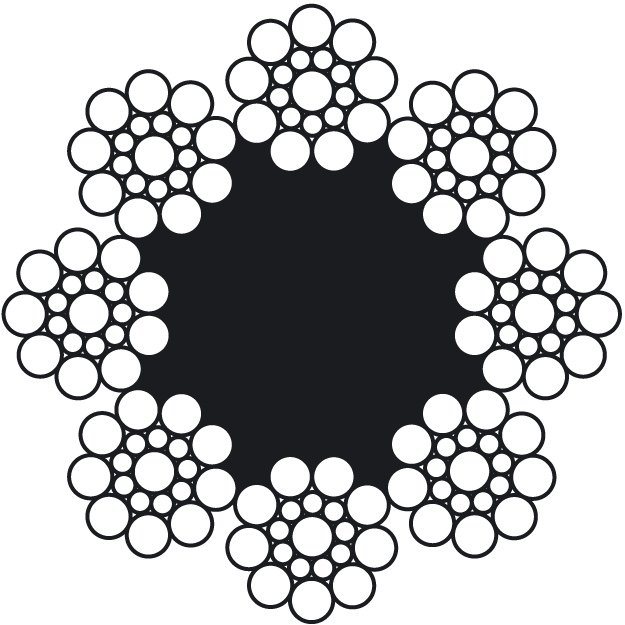

8x19S-FC
| Diameter, mm | Weight, kg/km | Rope grade, N/mm2 | |
| 1370/1770 | 1770 | ||
| Minimum breaking load, kN | |||
| 8 | 218 | 29,4 | 33,2 |
| 9 | 275 | 37,3 | 42 |
| 10 | 340 | 48 | 51,9 |
| 11 | 411 | 55,7 | 62,8 |
| 12 | 490 | 66,2 | 74,7 |
| 13 | 575 | 77,7 | 87,6 |
| 14 | 666 | 90,2 | 102 |
| 15 | 765 | 98,9 | 117 |
| 16 | 870 | 118 | 133,0 |
