Advantages of Octopus wire ropes
High strength and wear resistance
Less bearing surface wear
Operation at low temperatures
Lower impact of dynamic loads on a rope
Designed specially for operation on drilling rigs
Improved breaking strength compared to standard wire ropes
Special design
EN 12385
(6x31WS-IWRC)
(6x31WS-IWRC)
1. Diameter 25,0 mm
2. Weight 2,78 kg/m
3. T.S. 1770 N/mm2
4. Aggregate breaking force 548 kN
2. Weight 2,78 kg/m
3. T.S. 1770 N/mm2
4. Aggregate breaking force 548 kN
Octopus 817K
(8xK17S-IWRC)
(8xK17S-IWRC)
Comparison of wire ropes
1. Diameter 25,0 mm
2. Weight 2,72 kg/m
3. T.S. 1770 N/mm2
4. Aggregate breaking force 542 kN
2. Weight 2,72 kg/m
3. T.S. 1770 N/mm2
4. Aggregate breaking force 542 kN
Octopus 6K
(6xK26WS-IWRC)
(6xK26WS-IWRC)
1. Diameter 25,0 mm
2. Weight 2,66 kg/m
3. T.S. 1770 N/mm2
4. Aggregate breaking force 531 kN
2. Weight 2,66 kg/m
3. T.S. 1770 N/mm2
4. Aggregate breaking force 531 kN
Steel wire ropes
Submit a request
We will contact you to clarify the details
Application of Octopus wire ropes
Fixed drilling rigs
Offshore oil rigs
Mobile drilling rigs
Fiber cores
Sisal fiber is used as raw material for the fiber core of hoist ropes. Due to its properties, the core acquires the ability to absorb and accumulate lubricant, gradually generating it during the operation of the rope. Therefore, the rope remains lubricated throughout the entire service life. Fiber cores, unlike polypropylene cores, do not fail under the influence of low temperatures.
The default lubricant is German operational lubricant Nyrosten T55. Upon a customer's request, it is possible to apply low-temperature lubricant Nyrosten A19/200 with the range of operating temperatures from -55 to +100 °С.
The default lubricant is German operational lubricant Nyrosten T55. Upon a customer's request, it is possible to apply low-temperature lubricant Nyrosten A19/200 with the range of operating temperatures from -55 to +100 °С.
End fittings
Wire ropes are complete with end fittings. We use special factory-made eye end fittings for splicing the rope when it is inserted into the hoist system to maintain the structural integrity of the rope after cut and slip procedure.
End fittings
Wire ropes are complete with end fittings. We use special factory-made eye end fittings for splicing the rope when it is inserted into the hoist system to maintain the structural integrity of the rope after cut and slip procedure.
Mesh grips for steel wire ropes
For easier installation of a new rope, we offer our customers special steel wire mesh grips. They are tightened securely on the free ends of the old rope and the new one connecting them firmly. After that, the rope is installed on the winding hoist drum.
Get the catalogue
Leave a request and we will send you the catalogue with Octopus steel wire ropes by e-mail
By clicking the "Get the catalogue" button, you agree to the processing of personal data and the privacy policy
Service Center
From our experience, the better is the fit of a rope the longer is its service life. Specialists of the Service Center have already helped dozens of clients with selection and maintenance of wire ropes on different equipment from cranes to drilling rigs. Factors such as area of application, equipment features, operating conditions, etc. are taken into consideration during their work with new sites.
Specialists of the Service Center provide the following rope related services:
Specialists of the Service Center provide the following rope related services:
- Rope selection for specific working conditions.
- Advice on application features, rope installation and operation.
- Designing special rope constructions (in cooperation with Technological Service).
- Supply of pilot batches of products.
- Selection of terminations and fasteners.
- Technical support for rope installation at a client's site.
- Control over rope operating life and calculation of guaranteed service life
- Trainings.
Company introduction
АО "Severstal Wire Ropes" (part of the Severstal-metiz group of companies) is a Russian manufacturer of steel wire ropes. The product range of the company includes more than 100 types of wire ropes produced in accordance with domestic and international standards (EN and API).
Customers choose our special wire ropes for:
Customers choose our special wire ropes for:
- Oil and gas producing industry
- Mining
- Production and maintenance of elevators
- All types of cranes used in any manufacturing industry
- Cableways
- Electricity supply industry
For each of these applications, we produce a separate product line of special ropes with unique technical performance and design.
For oil and gas producing industry, we produce special 6-strand and 8-strand Octopus® wire ropes with compacted outer strands. Thanks to their design, Octopus wire ropes are much stronger and have extended operational life compared to standard and out-dated ropes. This allows our customers to significantly reduce the number of wire rope replacement operations and cut the cost of servicing a drilling rig.
The Quality Management System of Severstal Wire Ropes is certified according to international standards ISO 9001:2015, 45001:2018 и 14001:2015. All manufactured products comply with Russian and European standards and have necessary quality certificates.
For oil and gas producing industry, we produce special 6-strand and 8-strand Octopus® wire ropes with compacted outer strands. Thanks to their design, Octopus wire ropes are much stronger and have extended operational life compared to standard and out-dated ropes. This allows our customers to significantly reduce the number of wire rope replacement operations and cut the cost of servicing a drilling rig.
The Quality Management System of Severstal Wire Ropes is certified according to international standards ISO 9001:2015, 45001:2018 и 14001:2015. All manufactured products comply with Russian and European standards and have necessary quality certificates.

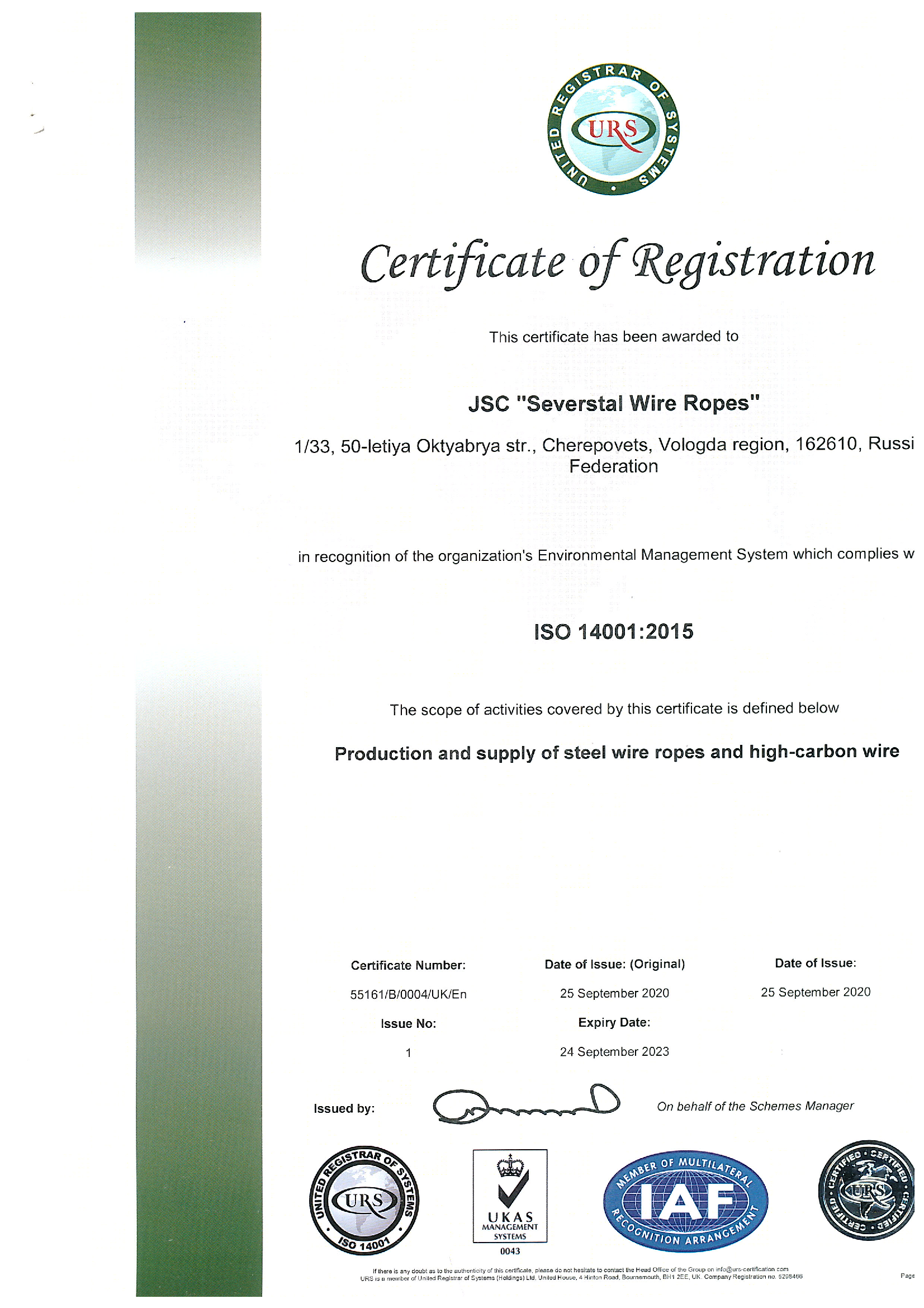

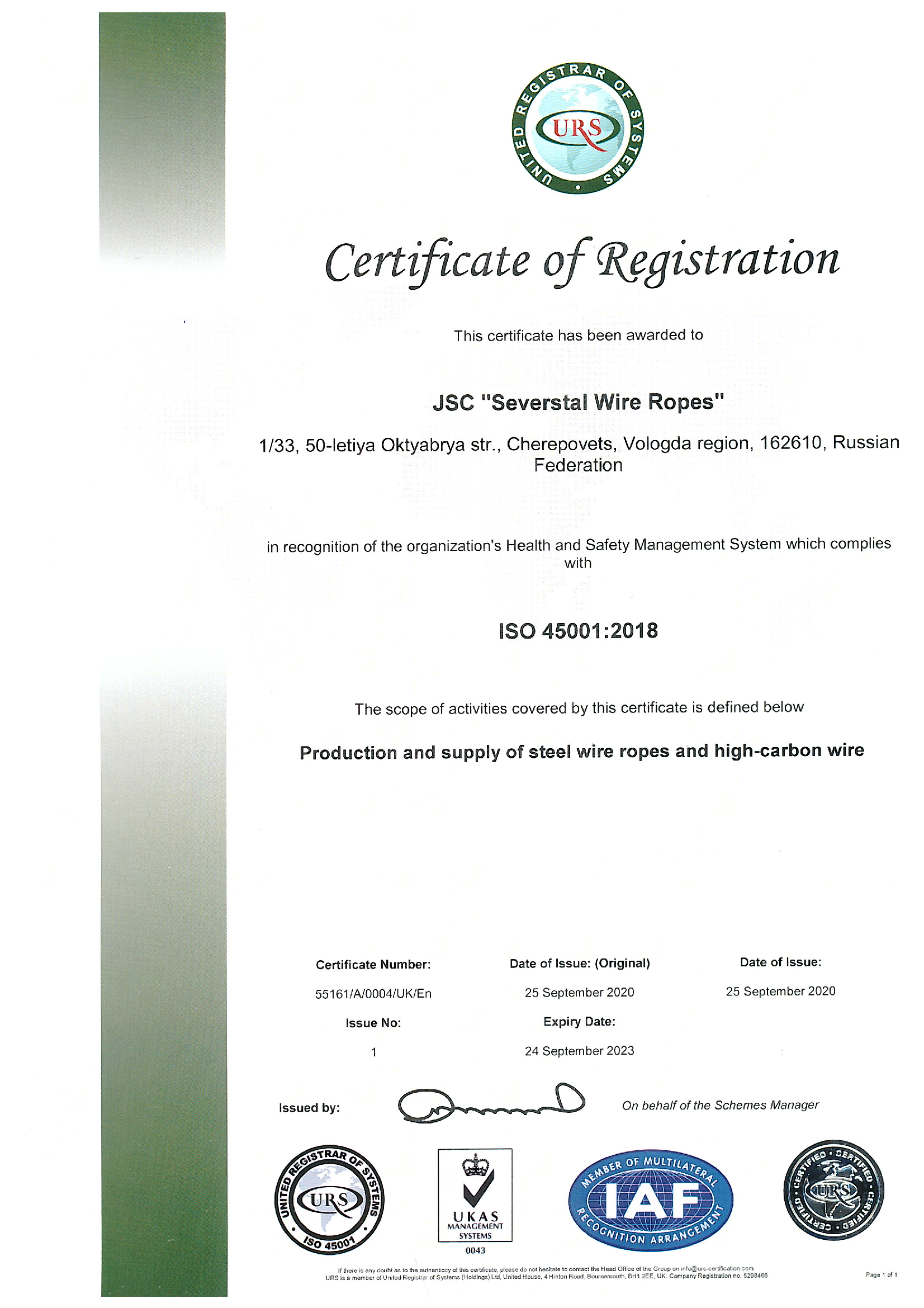

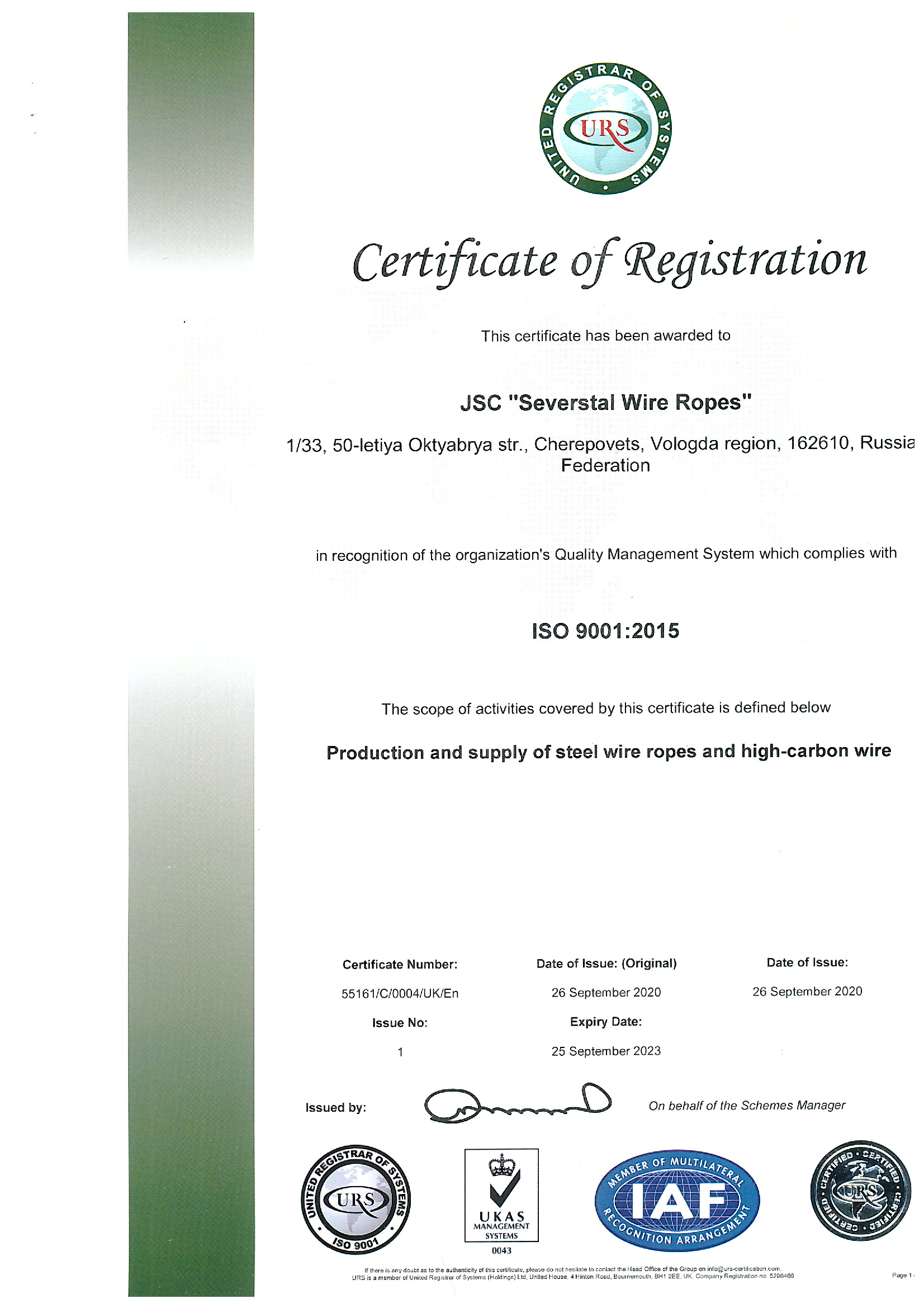

Certificates
